Product List

Home > Products > Diaphragm valve > Hand-lined diaphragm valveGG41Fx, GG641Fx, GG941Fx PN6~PN16 hand-lined diaphragm valves

Description Material Performance Product Size Specifications

Caliber: DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150
Medium: water, oil, steam
Pressure: 1.0 ~ 2.5 Mpa
Parts material: stainless steel, brass, carbon steel
Applicable temperature: -10℃~60℃
Applicable industries: urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection
Manual operation, electric control, pneumatic control
Trouble shooting: stop water to clear trouble
Packing: in cases and wooden cases
Scope of use: the product can be used in different working temperatures and liquid pipelines.
Products in line with the standard: manual, pneumatic, electric.

No Information

Main performance parameters

model	Nominal pressure PN
GG41/641/941Fx-6Z~16Z	6-16
GG41/641/941Fx-6C~16C	6-16
GG41/641/941Fx-6P~16P	6-16
GG41/641/941Fx-6R~16R	6-16
GG41/641/941Fx-6PL~16PL	6-16
GG41/641/941Fx-6RL~16RL	6-16

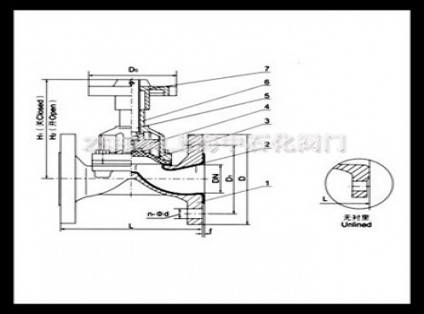

Main overall dimensions

（unit：mm）

Nominal pressure	size	Nominal size DN
Nominal pressure	size	15	20	25	32	40	50	65
6	L	125	135	145	160	180	210	250
	D	80	90	100	120	130	140	160
	D₁	55	65	75	90	100	110	130
	D₂	40	50	60	70	80	90	110
	b	12	14	14	16	16	16	16
	Z×Φd	4×Φ12	4×Φ12	4×Φ12	4×Φ14	4×Φ14	4×Φ14	4×Φ14
	D₀	100	100	120	120	140	140	200
	H₁	105	115	120	125	135	155	170
	H₂	110	125	135	150	175	195	200
10	L	125	135	145	160	180	210	250
	D	95	105	115	135	145	160	180
	D₁	65	75	85	100	110	125	145
	D₂	45	55	65	78	85	100	120
	b	14	16	16	18	18	20	20
	Z×Φd	4×Φ14	4×Φ14	4×Φ14	4×Φ18	4×Φ18	4×Φ18	4×Φ18
	D₀	100	100	120	120	140	140	200
	H₁	105	115	120	125	135	155	170
	H₂	110	125	135	150	175	195	200
16	L	130	150	160	180	200	230	290
	D	95	105	115	135	145	160	180
	D₁	65	75	85	100	110	125	145
	D₂	45	55	65	78	85	100	120
	b	14	16	16	18	18	20	20
	Z×Φd	4×Φ14	4×Φ14	4×Φ14	4×Φ18	4×Φ18	4×Φ18	4×Φ18
	D₀	120	120	140	140	160	160	200
	H₁	110	120	125	130	140	160	175
	H₂	115	130	140	155	180	200	205
