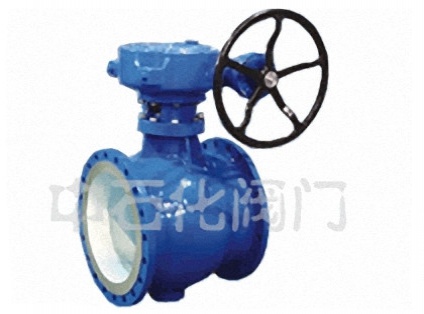

V type ball valve is a fixed ball valve, ball valve seal is a single seat, adjust the ball in the best performance, is equal percentage flow characteristic, adjustable ratio of 100:1. Is a core seat is made of metal?or?metal, rotating ball valve on the PTFE seal fit, it will be the best control valve and butterfly valve are combined into a whole, can be used as a control valve, but also can be used as a cut off valve. Its main features are:
(1) the integral body of the pipe joint is not affected by the stress of the pipe?or?bolt, and the pressure hull is not affected by the "sudden change" of the pressure due to the no pipe joint of the valve body;
(2) with a V type body, even in the case of small flow?or?high viscosity media, but also in the entire range, to ensure the accuracy of control;
(3) leakproof durable seat in its outer lining with stainless steel inner core PTFE cup?or?O type sealing ring, the valve seat made of tungsten cobalt hard alloy with large cross section, through a corrugated spring alloy reinforced seat structure;
(4) when the valve is closed, producing wedge shear force between V notch and the valve seat, and has self-cleaning function and can prevent the ball stuck, especially suitable for high viscosity, suspension, unclean paper pulp and fiber media applications.
Order note:
If there is no selected model, please provide detailed parameters, such as medium, temperature, pressure, caliber, material and so on. Our technicians will?select?for you
Two. Provided that the selected model is available according to the selected model
Three, non standard products need to provide samples?or?confirmed by drawings
Note: the information is for reference only,?or?incomplete, so please feel sorry for the inconvenience. The company can choose according to different requirements and parameters. The company has a variety of sizes, pressure, different materials, connections, drive mode, to meet different needs of various types of valves. Please contact 021-6651 8677?or?consult online.
?
Design and manufacture: AP1608; GB/12237-1989.
Inspection and testing: AP1608; GB/T13927-1992.

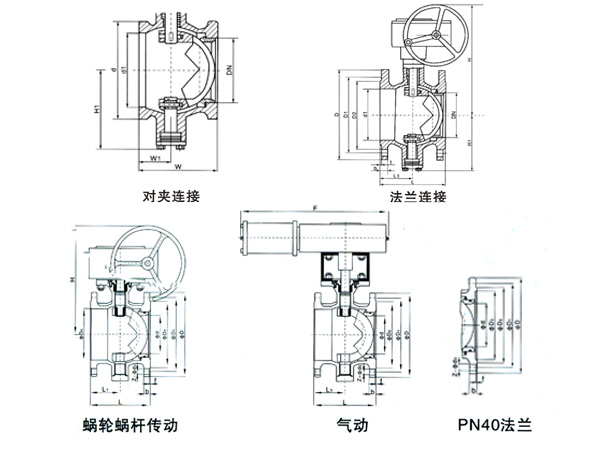

Flange connection: JB/T79.1 ~ 2-1994; ASME/ANSIB 16.5.
Structure length: ASME/ANSIB16.10; GB/T12221-1989
