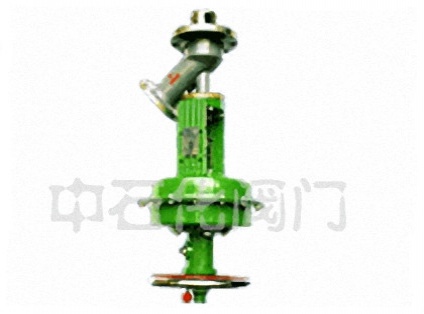

ZHYO tank bottom valve is a special structure in the form of single seat control valve, valve valve flow path into the Y shape, smooth flow, pressure drop, valve seat leakage conforms to the ANSIB1G.104 standard, HA valve equipped with multi spring diaphragm actuator, the structure is compact; the output force, the optimal control valve easy to deposit or containing particles of liquid.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.
alve body：ZG230～450、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2
spool：0Cr18Ni12Mo2、Surfacing welding of titanium alloy
valve seat：Teflon
Stem, push rod：2Cr13、1Cr18Ni9Ti
Corrugated diaphragm：Nitrile rubber reinforced polyester fabric clip
Film cover：A3
Spring：60Si2Mn
Packing: PTFE, flexible graphite, stainless steel bellows
Gasket: asbestos rubber sheet、1Cr18Ni9Ti、Graphite spiral wound gasket
