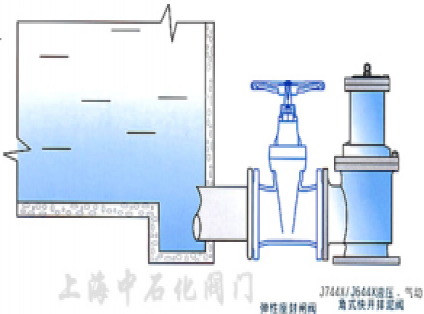

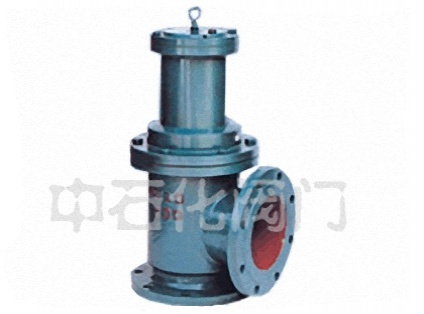

J744X/J644X hydraulic, pneumatic angle type quick opening mud valve, is a hydraulic source or pneumatic source for the implementation of the angle of the valve actuator. The outer wall is arranged at the bottom of the sedimentation tank, and is used for the removal of the sludge and the dirt from the bottom of the pool. The valve hydraulic cylinder piston for the L - shaped leather bowl, sealing performance is good, durable, the valve seal is also a rubber seal, no leakage. Can also be achieved through the four - position two - way solenoid valve to achieve remote control. Easy to operate, safe and reliable. Hydraulic angle type quick opening mud valve, pneumatic angle type quick open mud valve, angle type quick open mud valve.
Note: parameters are for reference only, or are not full. Valve can
Nominal pressure 0 6MPa, 1 0MPa
Nominal diameter: 100 ~ 400mm
Minimum horse driving pressure: 0.15MPa
Applicable medium: water, sewage
Driving medium: water, gas
Applicable temperature: 0 ~ 80
Flange standard: GB / L T 72416 GB / T 9113
Test standard: T / L GB 3927 APl 598
