Principle of action:
Pipes in operation, the floating ball in the ball at the bottom of the bowl, a large number of exhaust, when the tube air, water rushed into the valve, floating ball after the ball bowl then response, to close the floating ball float, pipeline during normal operation, if there is a small amount of gas concentration in the valve to a degree, water levels fall in the valve, floating ball drops, the gas is removed from the holes. If the water pump stops, negative pressure will be generated at any time, the floating ball will drop at any time to carry out a large number of inspirations to ensure the safety of the pipeline.
Main USES:

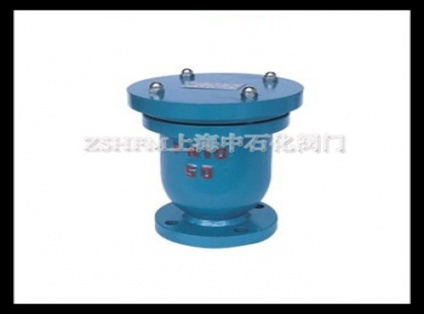

P41X quick exhaust valve is suitable for industrial medium water pipeline, as the equipment to quickly remove the gas in the pipeline, in order to improve the efficiency of water conveying equipment and protect the pipeline from deformation and rupture, is a necessary equipment for the pipeline. The valve is a cylindrical valve body with stainless steel float ball and plug head. This valve is installed at the exit of the pump or in the water supply and distribution pipeline to remove a large amount of concentrated air in the pipeline, so as to improve the efficiency of the water pipe and the water pump.
Main features:
1, can eliminate gas in the pipeline, reduce resistance to save energy.
2. When the pipe is under negative pressure, the product can quickly and automatically absorb air to prevent the pipe from breaking.
3. The exhaust capacity is multiple times of the ordinary double-hole exhaust valve.
4, float ball bracket is stainless steel, long service life, safe and reliable.
Technical parameters:
1. Medium: clear water
2. Temperature: normal temperature
3. Valve body: gray cast iron HT200
4. Float ball and plug head: stainless steel
5. Sealing material: butadiene rubber
6. Pressure of valve body test: 1.5mpa
7. Pressure of float ball and seal test: no water leakage at 0.05-1.1mpa
Scope of use: the product can be used in industrial medium for water pipe.
