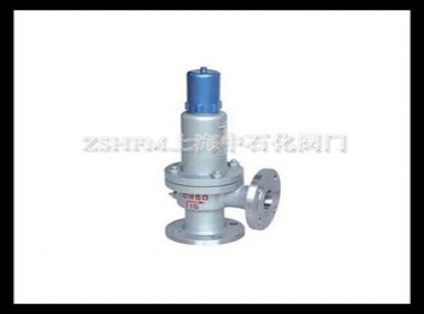

Product name: spring micro-opening safety valve
Product model: a41h-c, a41y-p, a41y-r
Product pressure: 1.6-40mpa
Product material: cast steel, stainless steel
Product overview:
A41h-c, a41y-p, a41y-r spring micro-open spring safety valve is suitable for LPG, air, water and other media equipment or pipeline with operating temperature ≤300℃. A41h-c, a41y-p, a41y-r micro-opening enclosed spring safety valve is suitable for equipment or pipeline with corrosive medium with operating temperature ≤200℃, as overpressure protection device.
The characteristics of
1. Small displacement, energy saving
Flat design disc and seat for easy repair and rework
3. Small deviation of setting pressure, up to ±3%
4. select high-quality spring steel to ensure the life and stability of the spring
Scope of use: the product can be used in water, air and other non-corrosive media pipeline.
The product conforms to the standard: GB/T 12243.
