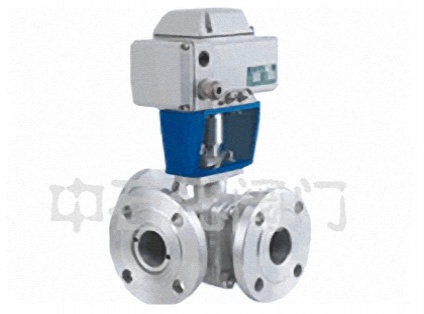

ZKRQR series of electric O - shaped three - way ball valve by the electric actuator and the three - way ball valve. Changing the relative position of the ball core and the pipeline can realize the different combination control of the three pipeline fluid. The products are 220V single-phase AC power source, receiving control system (or operator) to the 220V switch signal, and drive through the single-phase power switching single-phase reversible gear motor, the required combination of requirements, so that valve to achieve the reversing effect on the pipeline fluid. The T type three links can make the three channels orthogonal to each other, that is, the split (combined) effect, and also can make the two pipes connected and cut off the other pipeline. The L type three way flow path can only be communicated with each other orthogonal two pipelines?or?switching direction.
Note: parameters are for reference only,?or?are not full. Valve can be used in accordance with the requirements of different pressure, material, caliber. Specific please contact?or?online advisory contact.
Nominal pressure: PN1.0, 1.6, 2.5, 4.0Mpa, ANSI150, 300
Nominal diameter: DN20 ~ 300mm
Working temperature: hard seal: -40 ~ 300 soft seal: -40 ~ 180
Operating voltage: 220V, 380V
Valve seat form: stainless steel movable hard seal, PTFE soft seal.
Main material: body (1) WCB (2) 304 (3) 316 (4) 316L
Spool (1) 304 (2) 316 (3) 316L
Fluid range: air, water, gas, petroleum and petrochemical products, corrosive media
Surface treatment: polishing
