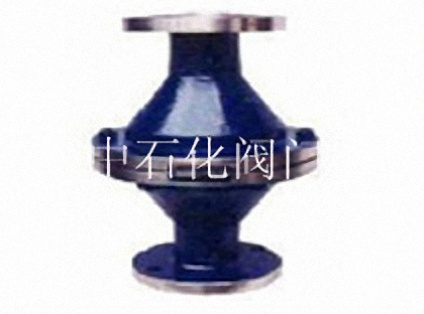

The role of a flame arrester is to prevent external flame channeling into flammable and explosive gases in the equipment, pipes or prevent flame spread between equipment, pipelines. Flame arrester is also called flame filter, flame trap and fire arrester. Usually installed in the delivery or discharge of flammable and explosive gas storage tanks and pipelines. Such as torches, heating combustion systems, petroleum gas recovery systems or other flammable gas systems. Stored light below 60 DEG C for petrochemical products. Can be matched with the use of breathing valve, but also can be used alone. Internal floating roof tank ventilation pipe.
Our company introduced advanced technology and comprehensive in Britain, Germany and other companies, with advanced processing equipment and perfect detection device, explosion-proof corrugated Zuhuo production, has the advantages of compact structure, high reliability, fire core explosion-proof, anti-corrosion, fire resistance, easy cleaning and other advantages, especially suitable for hydrogen. Nitrogen, oxygen, liquefied gas and other special medium.
The product has reasonable structure, beautiful shape, fire resistant layer core made of stainless steel material, strong corrosion resistance, resistance of fire, explosion and other technical performance has prominent advantages.
Shell material: carbon steel, aluminum alloy, stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Flame retardant core parts: stainless steel.
Sealing ring material: ptfe.
Working temperature: less than or equal to 480 DEG C.
Explosion proof grade: 5501:IIA IIB, BS, IIC.
|

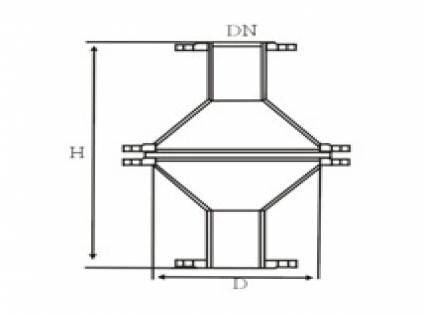

DN
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
in
|
3/4
|
1
|
11/4
|
11/2
|
2
|
21/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
L
|
195
|
195
|
220
|
220
|
245
|
245
|
280
|
325
|
325
|
427
|
496
|
593
|
860
|
|
H
|
200
|
200
|
236
|
236
|
240
|
240
|
270
|
274
|
274
|
288
|
306
|
320
|
580
|
Flange standard:
GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (user specified, please specify pressure level)
Manufacturing and testing standards:
Manufacture and acceptance of GB5908-86 (GB13347-92) and other standards (fire resistance and test methods for oil tank fire arrester); or user specified standards.
