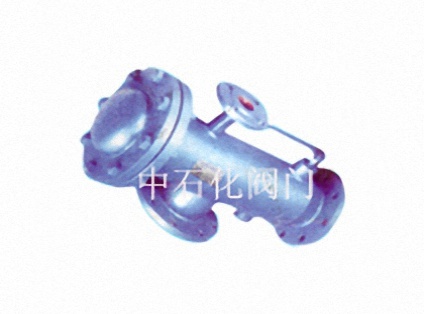

ZPG filter is a use of low quality water for industrial cooling filter, but also can be used for other filtering process, it has a function of washing out impurities, installed in the heat exchanger in front of the other executive agencies, regular cleaning to eliminate impurities.
When the normal condition, the steering valve is opened, the water is filtered by the filter cartridge, which is discharged from the outlet.
When the steering valve is closed and the drain valve is opened, the water is forced from the filter cylinder inlet mesh into the filter cylinder outside, mostly from the outlet, and a part of the collection of impurities from the filter net hole into the filter cartridge inside, have to backwash the filter cartridge, filter cartridge has reached from backwashing, reach wash in the mesh of impurities on the adhesion effect from external filter cartridge, impurities is discharged through the drain outlet.
Order note:
If there is no selected model, please provide detailed parameters, such as medium, temperature, pressure, caliber, material and so on. Our technicians will select for you
Two. Provided that the selected model is available according to the selected model
Three, non standard products need to provide samples or confirmed by drawings
Note: the information is for reference only, or incomplete, so please feel sorry for the inconvenience. The company can choose according to different requirements and parameters. The company has various sizes, pressure, different materials, connections, drive mode, to meet different needs of the filter. Please contact 021-6651 8677 or consult online.
1, ZPG-L (straight) 1, ZPG-I (straight through) technical parameters
Maximum working pressure: 1.6MPa operating temperature range: O C ~60 C O C ~150 c c c c c c c c c c c c
Specification: Dgl00~600 flow diversion valve opening (normal flushing) in normal circumstances, the steering valve open, water flow through the filter cartridge filter, is discharged from the water outlet. When the sewage valve is opened, the liquid total flow rate of the filter is increased, the flow rate is increased, and the impulse is adhered to the impurities on the filter wall.
The flow diverter valve closed when the steering valve closed, open sewage, water is forced from the filter cylinder inlet into the filter cylinder outside of a few network part and from external impurities collected by the filter segments the mesh into the filter cartridge inside, have to backwash the filter cartridge, wash the adhesion effect on impurities in mesh, impurities through the drain port of discharge.
1, ZPG-L1 type filter in the full flow of normal work, that is to maintain a high flow rate, but also with a low pressure drop, to avoid the low flow rate due to
Caused by surface stains.
2, directly installed on the pipe network system; do not need any support structure
3 save space
4, automatic flushing of sewage, do not need to install the side channel, folding discharge of sewage.
