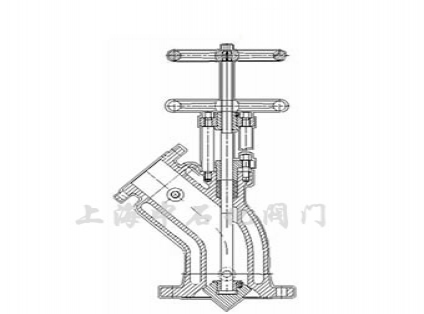

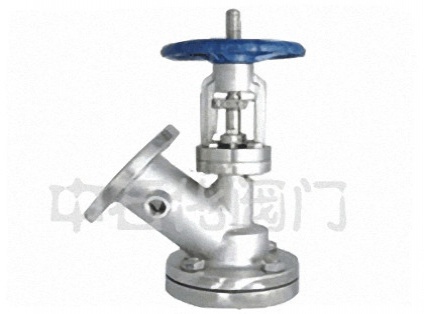

Insulation discharge valve is mainly used for reactors, tanks and other containers in the bottom of the discharge, discharge, sampling, and no dead zone off operation, phosphorus and phosphorus light medium, hydrofluorocarbons, hydrochloric acid, sodium hydroxide and potassium hydroxide, suitable for all kinds of acid, alkali, salt solution and organic solvent. Easy to operate, free to open, flexible and reliable movement; valve assembly and maintenance is simple, the sealing structure is reasonable, the sealing ring replacement is convenient and practical. The structure is mainly composed of a valve body, valve, seal, valve stem, valve gland, bracket, handwheel, flanges, nuts, screws and other parts. Its main parameters are: nominal diameter DN, discharge valve rated flow coefficient KV, discharge valve nominal pressure and the pressure discharge valve body and valve component materials, discharge valve flow characteristics, discharge valve for temperature, discharge voltage and power valve control signal, with the discharge valve accessories.
Note: parameters are for referenc
Pressure valve body material: cast steel, stainless steel, 316L.
Working pressure 0.6-2.5MPA, working temperature -425 C -20. Valve diameter DN25-DN300. Connection: flange. Drive mode: manual, pneumatic. Applicable medium: oil, acid, corrosive media, etc.. Manufacturing standards: gb.
Corrosion resistance, corrosion resistance
1, the use of media such as water, acetone, alcohol, ammonia, barium carbonate, benzene (WCB material with a minimum temperature of -290C, the maximum temperature of 4250C.)
2, the use of media such as particles, oil, paper pulp, carbon dioxide gas (stainless steel material with a minimum temperature of -1000C, the maximum use temperature of 23
20C.
3, prohibited the use of fluoride ionic liquids (such as HF) also cannot use alkali and phosphate (temperature, concentration of 1500C > 30%).
(two) the general working temperature, stainless steel: less than 1500C
(three) pres
